| SYSTEM | |
| CPU | 7th Generation Intel® Core™ Processor family: Intel® Core™ i7-7700T, 2.9 GHz Intel® Core™ i5-7500T, 2.8 GHz Intel® Core™ i3-7101TE, 3.4 GHz Intel® Pentium® G4600T, 3.0 GHz Intel® Pentium® G4560T, 2.9 GHz Intel® Celeron® G3930T, 2.7 GHz 6th Generation Intel® Core™ Processor family: Intel® Core™ i7-6700TE, 2.4 GHz Intel® Core™ i5-6500TE, 2.3 GHz Intel® Core™ i3-6100TE, 2.7 GHz Intel® Pentium® G4500T, 3.0 GHz Intel® Pentium® G4400T, 2.9 GHz Intel® Celeron® G3900T, 2.6 GHz |
| CHIPSET | Intel® Q170 |
| SYSTEM MEMORY | DDR4 1866/2133 SODIMM slot x 2, up to 32GB |
| DISPLAY INTERFACE | HDMI, VGA |
| STORAGE DEVICE | CFast™, HDD/SSD |
| ETHERNET | Intel® I210, 10/100/1000Base-TX x 3 |
| I/O | RS-232/422/485 x 6 USB Type A x 4 for USB 3.0 USB Type A x 2 for USB 2.0 RJ-45 x 3 for GbE LAN DB-44 for 34-bit Digital I/O (5V) CFast™ slot x 1 SIM card slot x 1 Power On/Off Button x 1 2 pin Remote power on/off Reset switch Mic-in x 1 Line-out x 1 Antenna opening x 2 SYS LED indicator x 1 HDD LED indicator x 1 DB-15 x 1 for VGA HDMI v1.3 x 2 DC-in 3-pin terminal block (9~36V) |
| EXPANSION | Full-size Mini-Card x 2 PCIe [x4] x 1 & PCIe [x1] x 1 (for A1) PCIe [x4] x 1 & PCI x 1 (for A2) PCI x 2 (for A3) |
| INDICATOR | Power LED HDD active LED |
| OS SUPPORT | 7th Generation Intel® Core™ Processor family: Windows® 10 IOT (64bit) Ubantu 16.04 above Fedora 25 above CentOS 7.3 above 6th Generation Intel® Core™ Processor family: Windows® 10 IOT (64bit) Windows® 8.1 (64bit) Windows® embedded 8 standard (64bit) Windows® 7 (64bit/32bit) Windows® embedded standard 7 (32/64bit) Ubantu 16.04 above Fedora 25 above CentOS 7.3 above |
| POWER SUPPLY | |
| POWER REQUIREMENT | 9 – 36V with 3-pin terminal block |
| MECHANICAL | |
| MOUNTING | Wallmount |
| DIMENSIONS (W X H X D) | 10.40” x 4.90” x 6.15” (264.2mm x 124.5mm x 156.2mm) |
| GROSS WEIGHT | 13.2 lb (6.0 kg) |
| NET WEIGHT | 9.9 lb (4.5kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -4°F ~ 131°F (-20°C ~ 55°C) (according to IEC68-2-14 with 0.5 m/s AirFlow; with industrial devices) |
| STORAGE TEMPERATURE | -49°F ~ 176°F (-45°C ~ 80°C) |
| STORAGE HUMIDITY | 5~95% @ 40°C, non-condensing |
| ANTI-VIBRATION | 5 Grms/ 5 ~ 500Hz/ operation – SSD/CFast™ card 1 Grms/ 5~ 500Hz/ operation – HDD |
| CERTIFICATION | CE/FCC class A |
Menu

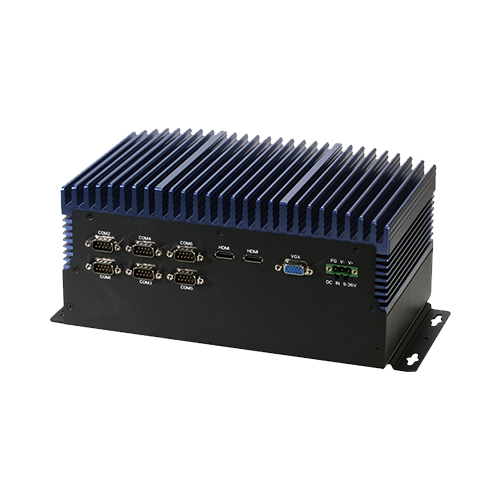

BOXER-6839
 کد محصول : | BOXER-6839 |
 توضیح کوتاه : | جعبه جاسازی شده Fanless PC با نسل ششم / 7th Intel® Core Process پردازنده رومیزی و PCIe [x4] و توسعه PCI |
 گارانتی : | یک سال |
 قیمت : | تماس بگیرید |
 دیتاشیت : |
